XWS-X

BROADBAND PLASMA LIGHT SOURCE

ISTEQ’s XWS-X light source product has been designed for those customers who need a powerful light source with high UV generation.

  • Significantly higher brightness across the whole spectral range in comparison to XWS-65 UV
  • Maximum spectral brightness up to 140 mW / (mm² sr.nm)
  • x6 Brightness improvement at UV range below 250 nm in comparison to XWS-65 UV
  • Extreme temporal and spacial stability: STD 0.05%

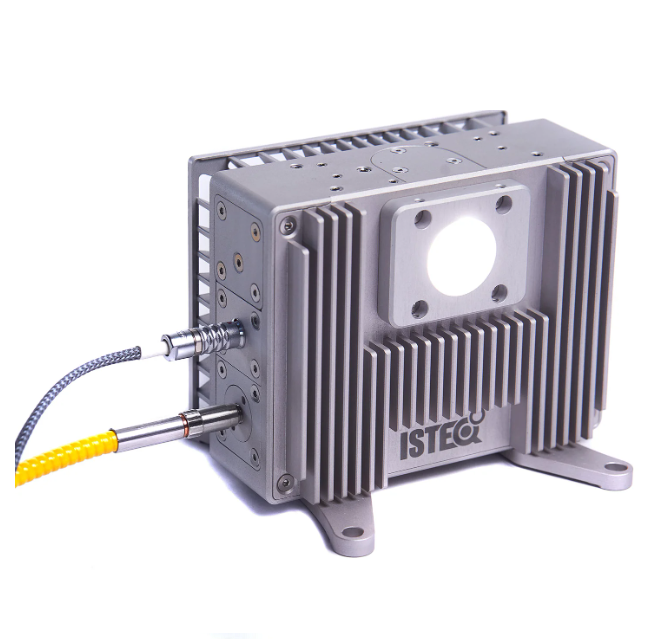

XWS-X - laser pumped plasma ultrabright broadband light source

In XWS sources, plasma emits light due to the interaction between a continuous energy input from a laser and the gas medium used (optical discharge).
These light sources have been developed as a replacement for traditional gas discharge lamps (Xenon, Deuterium, Tungsten, etc.) and LEDs.
Compared to these, XWS sources have a wider spectral range and higher spectral brightness.

Available with retroreflector
Available in Dual Port configuration
Output configuration: Free space or FCU
Available with Air Cooled/Water Cooled Optical Head
External source control and parameters monitoring by Laptop/PC via:
RJ45 (Ethernet, Web interface),
COM-port (RS-232)

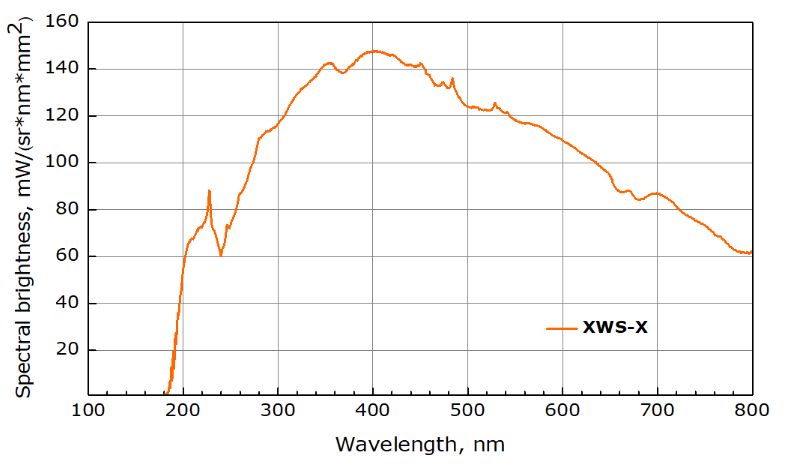

Spectral brightness of XWS-X light source in UV and VIS spectral region

APPLICATIONS XWS-X

  • Absorption and fluorescence spectroscopy
  • Microscopy, including confocal and fluorescence
  • Diagnostics systems in microelectronics
    (contamination and defect control)
  • Thin-film and critical dimension (CD) metrology
  • Detectors in chromatography, microfluidics, lab-on-a-chip,
    droplet spectrometers, cytofluorimeters, etc.
  • Biomedical applications (photodynamic therapy, etc.)
  • Additive technologies (photopolymerisation)
  • Artificial sunlight systems (test systems, illumination, etc.)

SPECIFICATIONS XWS-X

MODEL XWS-X
SOURCE PERFORMANCE
Spectral range 190 - 2500 nm​ UV configuration
Spectral range 250 - 2500 nm OFR configuration
Maximum spectral brightness for UV configuration
(avg for 350 - 550 nm), mW / (mm²·nm·sr), min / avg / max		 105/120/130
Maximum spectral brightness for OFR configuration
(avg for 350 - 550 nm), mW / (mm²·nm·sr), min / avg / max
Output power Free space up to 1.5 W
Output power via fiber 600 µm, mW​ min / avg / max 510 / 575 / 650
Emitting body size for UV configuration (spectral range 350 - 550 nm), µm 150x260
Lifetime (hours) 10000
Temporal and spatial stability STD < 0.05%
Lamp medium Xenon
s
MODEL XWS-X
OPTIONAL CONFIGURATIONS
Free space light output (default)
Retroreflector (Single port output only)
Dual port output
FCU light output
Air-cooled Optical Head
Water-cooled Optical Head
MODEL XWS-X
OPTICAL HEAD DESIGN
Free space output NA (by default) 0.4
Maximum output NA (upon request) 0.5
External optic interface C-mount,
30 Optical cage
Distance from plasma to output window, mm 21,5
Fiber interface (only for FCU version) SMA or FC
MODEL XWS-X
ADDITIONAL FEATURES
External control RJ45
(Ethernet,
Web interface),
COM-port
(RS-232)
Interlock / Remote plasma control DB-15 Connector
MODEL XWS-X
DIMENSIONS
Optical head dimensions (mm) 130x122x106
Power supply dimensions (mm) 351x175x232
Water cooled optical head dimensions (mm) 113x150x106
Liquid cooling unit dimensions (mm) 350x166x184
MODEL XWS-X
FACILITY REQUIREMENTS
Electrical 100 - 240 V,
​50/60 Hz
Gas purging (only for UV configuration) Nitrogen 99,99%

TECHNOLOGY

Find out more information about the technology of the broadband plasma light sources.
